1550nm Transmitter

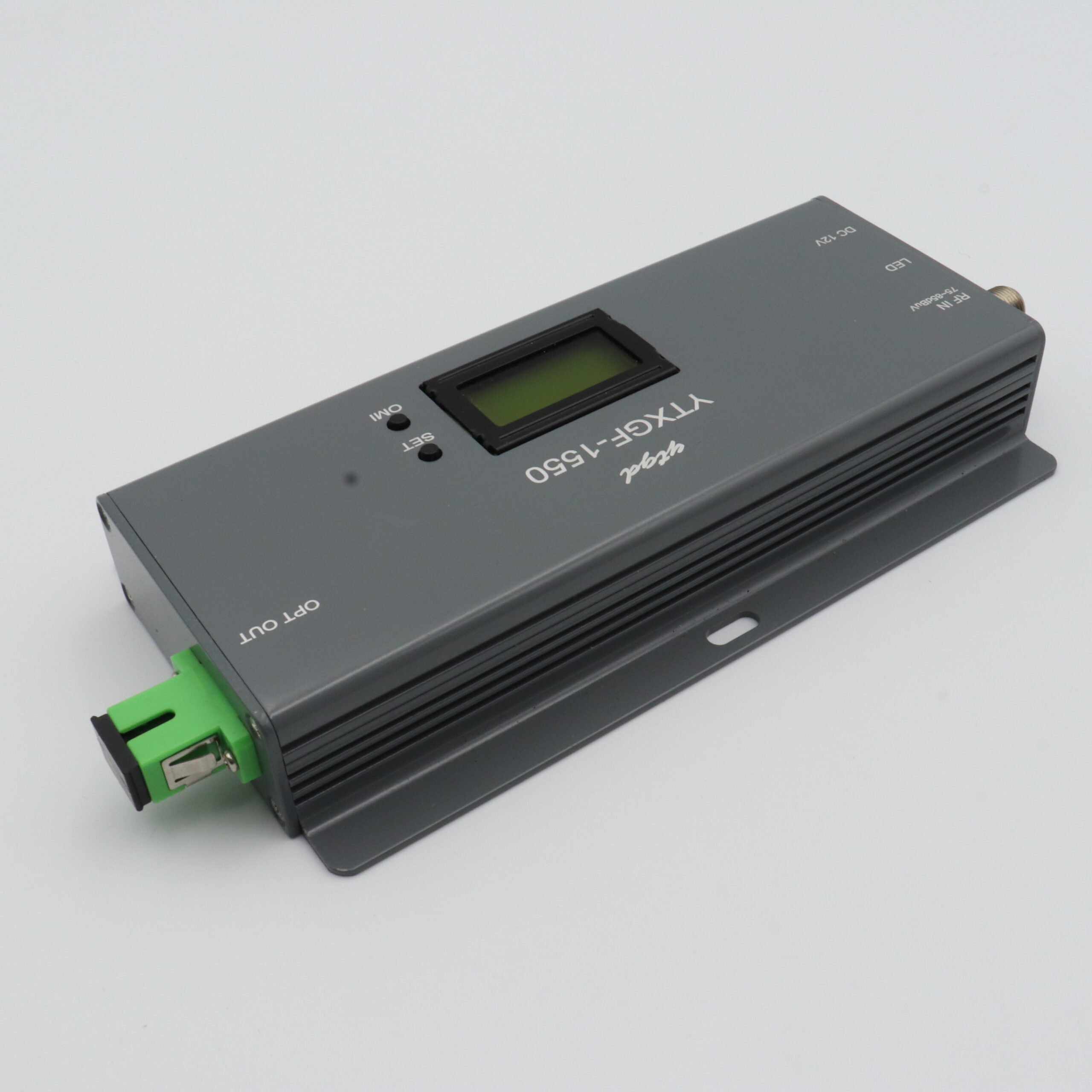

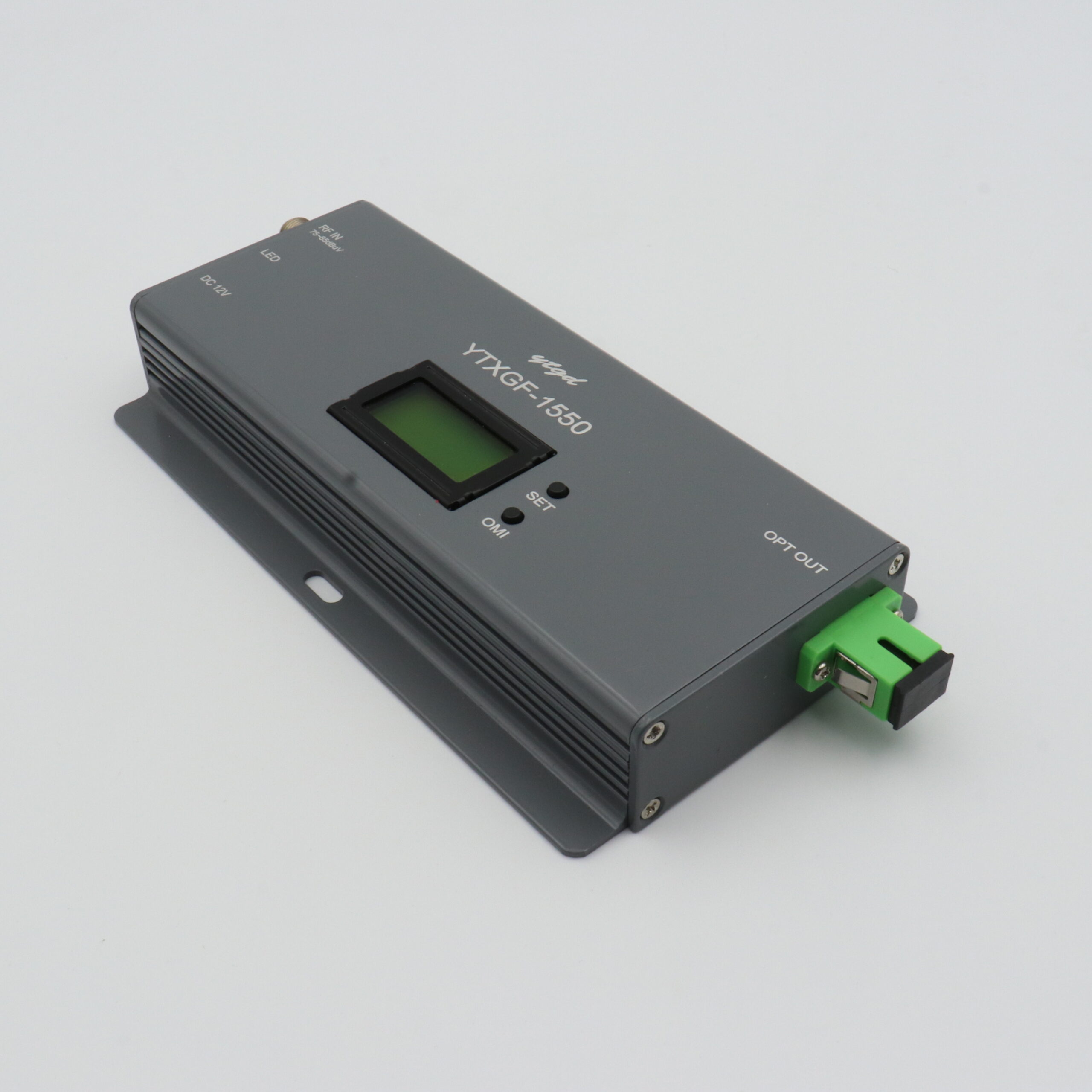

Mini 1550nm CATV Optical Transmitter SC/APC Fiber Port Single Power Out 10dBm 5km M15T10B
FEATURES：
- .Designed for FTTH(Fiber To The Home)networks
- .Excellent linearity and flatness
- .Single-mode fiber high return loss Extremely low noise
- .Ultra low noise technology
- .There is a optical Receive module
- .Smaller size and easier
DESCRIPTION：
The M15T10B have two SC/APC Connector. Works
at the supply voltage DC12V. RF input impedance of 75Ω. LCD
display. OMI Adjust.
QUICK REFERENCE DATA：
| PARAMETER | MIN | MAX | UNIT | |
| Optical parameters | Output Optical
Wavelength |
1550±20 | nm | |
| Output Optical Power | 3 | 10 | mW | |
| Receive Optical Power
(No OP-AGC) |
-6 | +1 | dBm | |
| Optical Return Loss | 45 | － | dB | |
| CNR | 51 | － | dB | |
| CSO | 58 | － | dB | |
| CTB | 63 | － | dB | |
| Connector | SC/APC | |||
| RF parameters | Frequency Range | 47-1000 | MHz | |
| Return Loss | 16 | － | dB | |
| Input Impedance | 75 | Ω | ||
| RF Input Level
(RF-AGC control) |
75 | 85 | dBμV | |
| OMI Adjust | 0 | 5 | — | |
| Flatness | － | ±0.75 | dB | |
| Power Supply(DC) | － | 12 | V | |
| Total current consumption | 180 | 205 | mA | |
| Power Consumption | － | 2.5 | W | |
