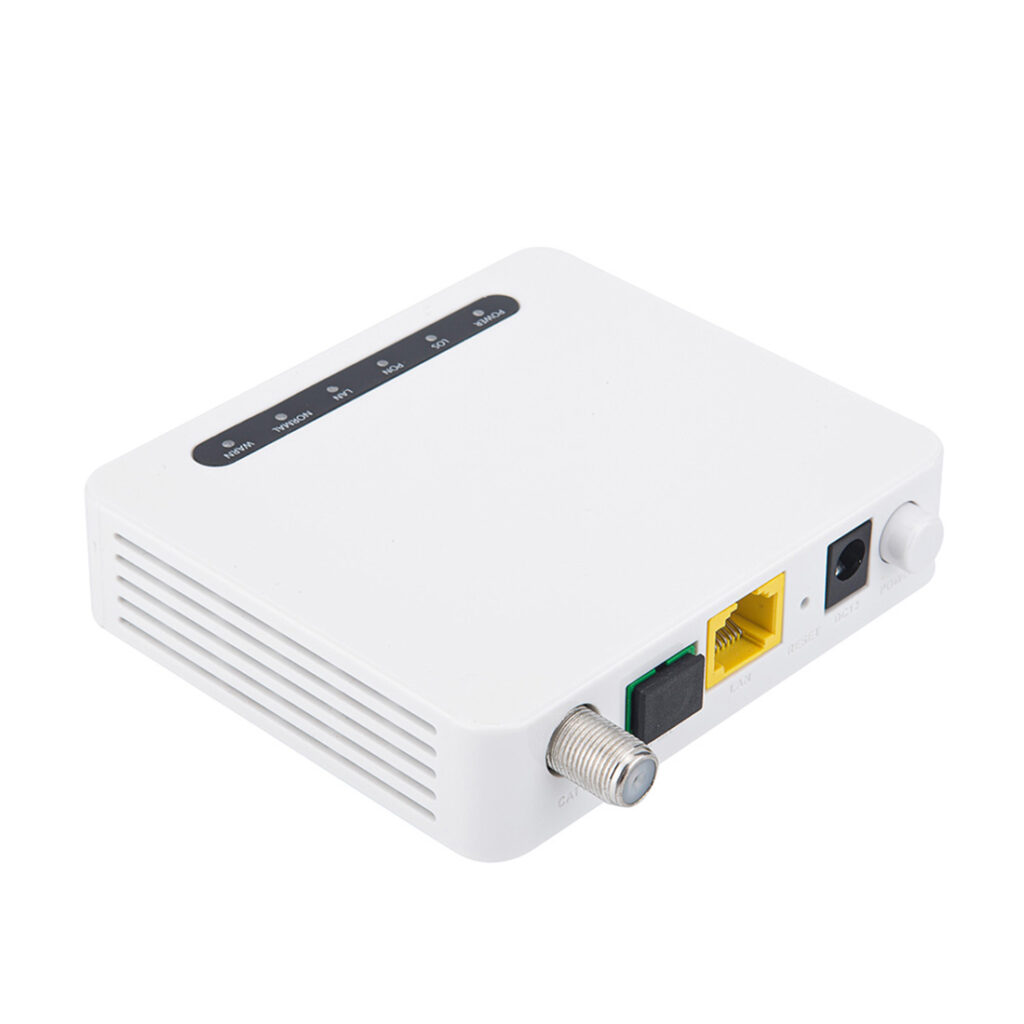

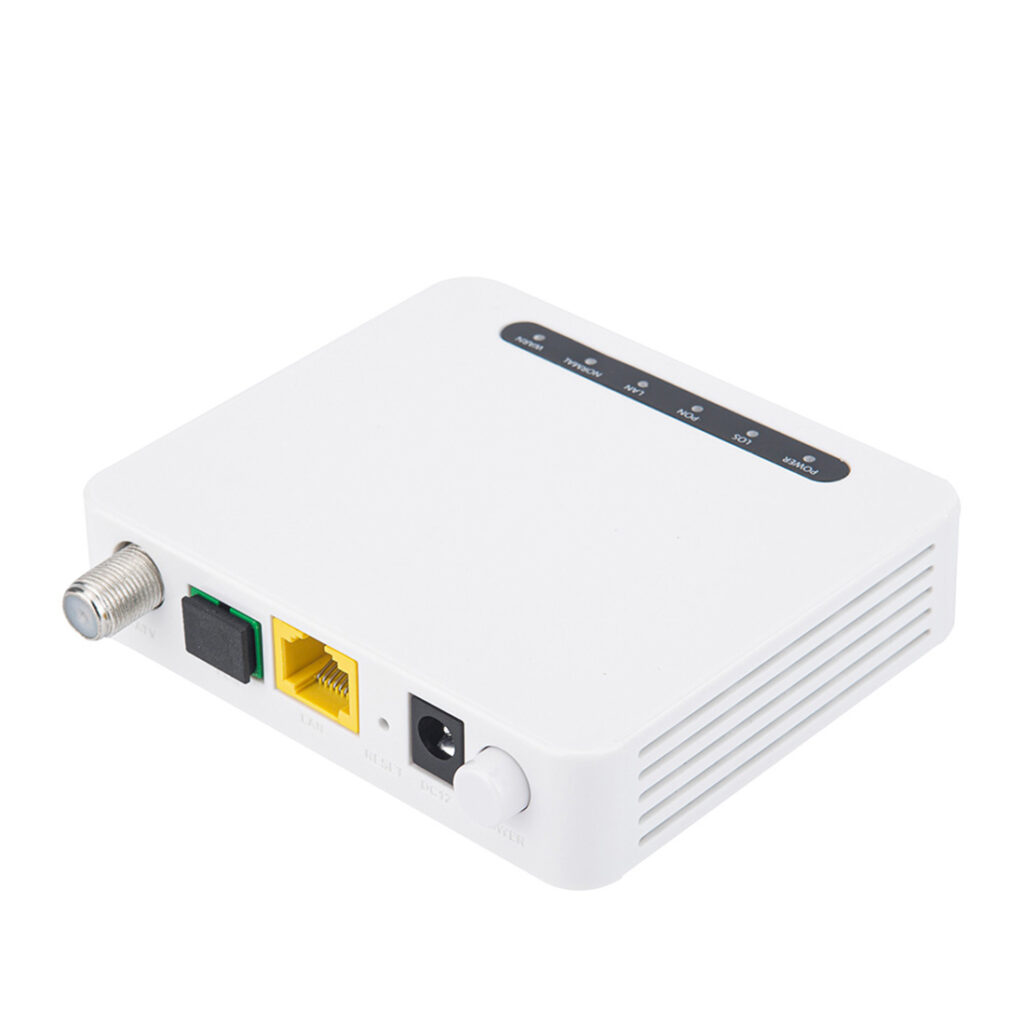

xPON ONU 1GE+1CATV HY-15-XO1G1CA
Description
XPON ONU supports dual modes, and can automatically switch between EPON or GPON mode when connected to EPON OLT or GPON OLT. XPON ONU meets the SFU and HGU of China Telecom EPON CTC 3.0 standard. There is a CATV port, support cable TV service and remote control, support XGSPON environment, OMCI control, OAM, multi-brand OLT management, TR069, TR369, TR098、NAT, firewall functions. And it has the characteristics of high reliability, convenient management, flexible configuration, quality of service (Qos) new network environment application and smart home furniture gateway. The products sold by our company are guaranteed for 1-3 years from the date of sale, and the software can be upgraded for free for life.
(Single size: 115x115x70mm Carton size: 610x485x225mm) (Product model: CX01010R01D)
Overview
- 1GE+CATV is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.
- 1GE+CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
- 1GE+CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China telecommunication EPON CTC3.0.
- 1GE+CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
- 1GE+CATV is designed by Realtek chipset 9601D
Feature
- Supports Dual Mode (can access GPON/EPON OLT).
- Supports SFU and HGU of EPON CTC 3.0 standard
- Supports GPON G.984/G.988 standards and IEEE802.3ah.
- Support CATV interface for Video Service and remote control by Major OLT
- Support NAT, Firewall function.
- Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
- Support port mode of vlan configuration
- Support LAN IP and DHCP Server configuration
- Support TR069 Remote Configuration and maintenance
- Support Route PPPOE/DHCP/Static IP and Bridge mixed mode
- Support IPv4/IPv6 dual stack
- Support IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy
- Compatible with popular OLT(HW, ZTE, FiberHome,)
Specification:
| Technical Item
|
Details |
| PON interface
|
1 G/EPON port(EPON PX20+ and GPON Class B+)
Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 1×10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
CATV Interface |
RF, optical power : +2~-15dBm
Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| LED | 6LED, For Status of POWER, LOS, PON, LAN, NORMAL, WARN |
| Push-Button | 2, for Function of Power on/off, Reset, |
| Operating condition | Temperature : 0℃～+50℃
Humidity :10%～90%（non-condensing） |
| Storing Condition | Temperature : -40℃～+60℃
Humidity :10%～90%（non-condensing） |
| Power supply | DC 12V/1A |
| Power Consumption | <3W |
| Net Weight | <0.2kg |
Panel lights and Introduction
| Pilot Lamp | Status | Description |
| POWER
|
On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN | On | Port is connected properly (LINK). |
| Blink | Port is sending or/and receiving data (ACT). | |
| Off | Port connection exception or not connected. | |
| NORMAL | On | Input optical power is between -15dbm and 2dBm |
| Off | Input optical power is higher than 3dbm or lower than -15dBm | |
| WARN | On | Input optical power is higher than 2dBm or lower than -15dBm |
