WDM System

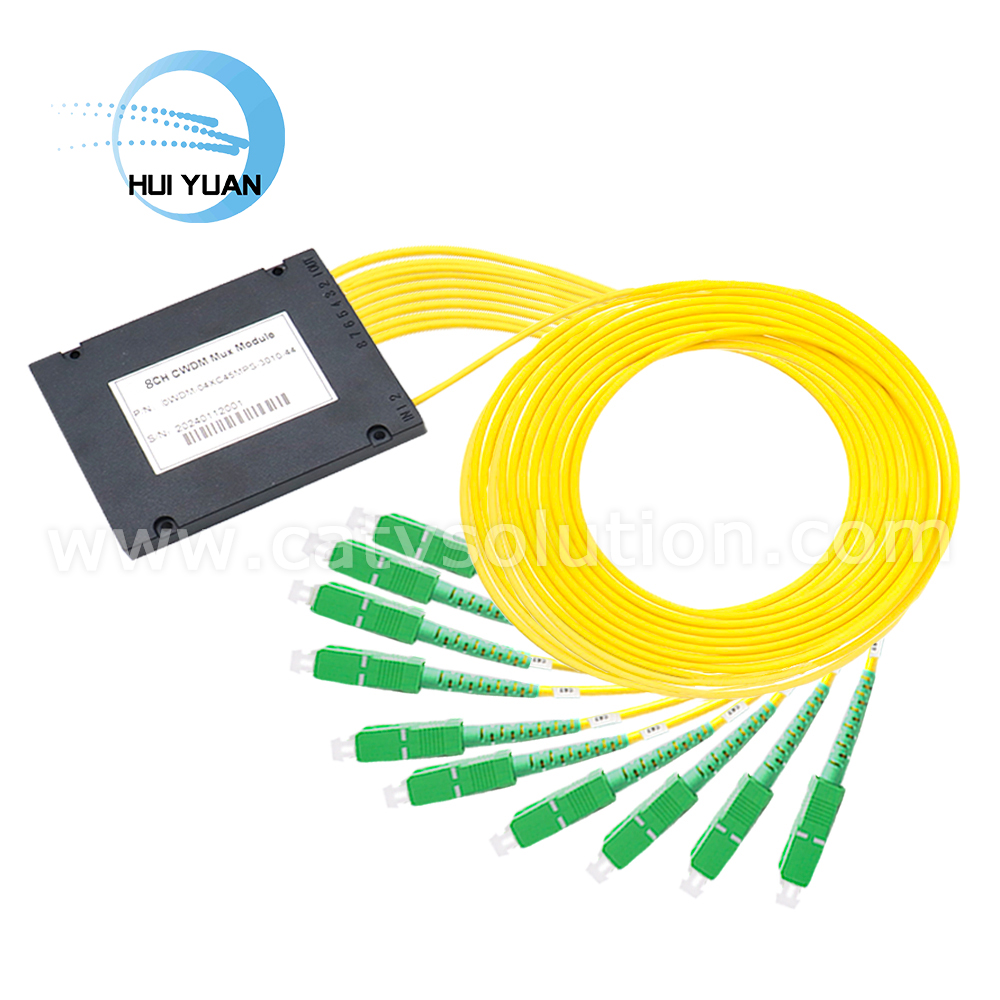

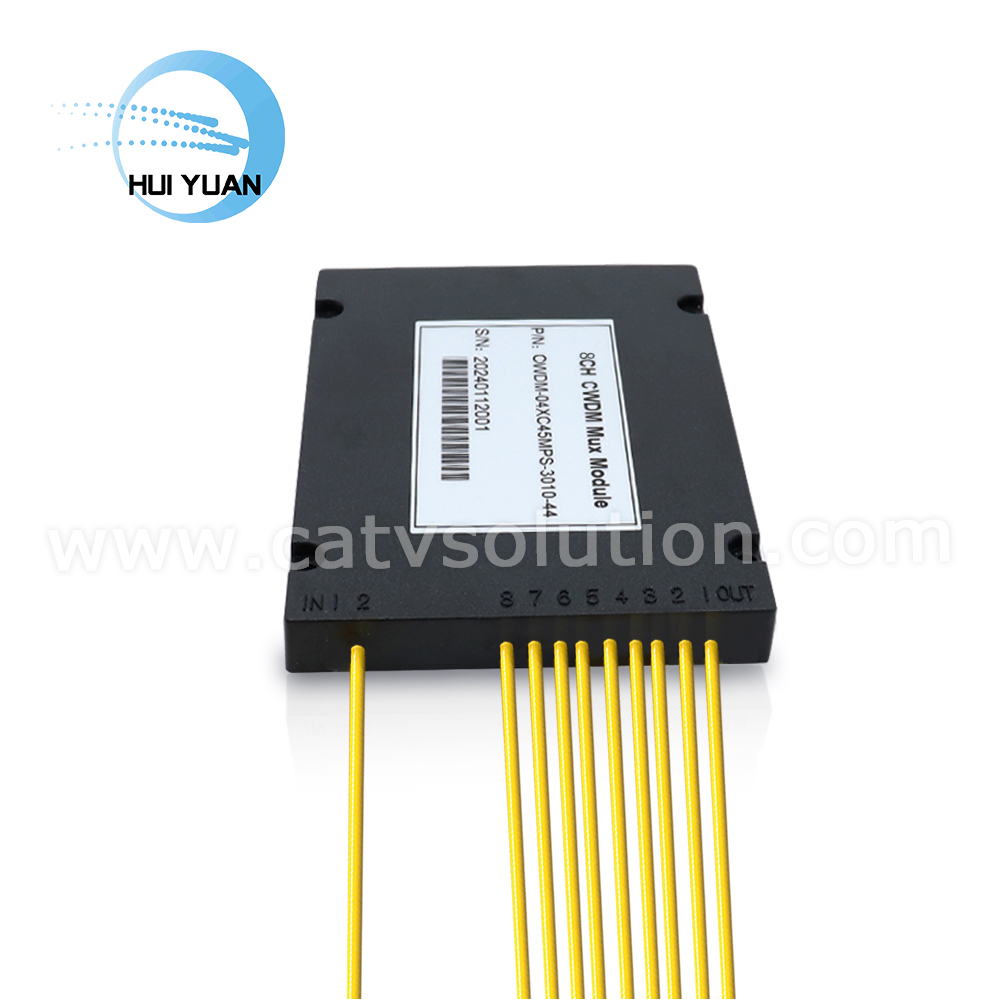

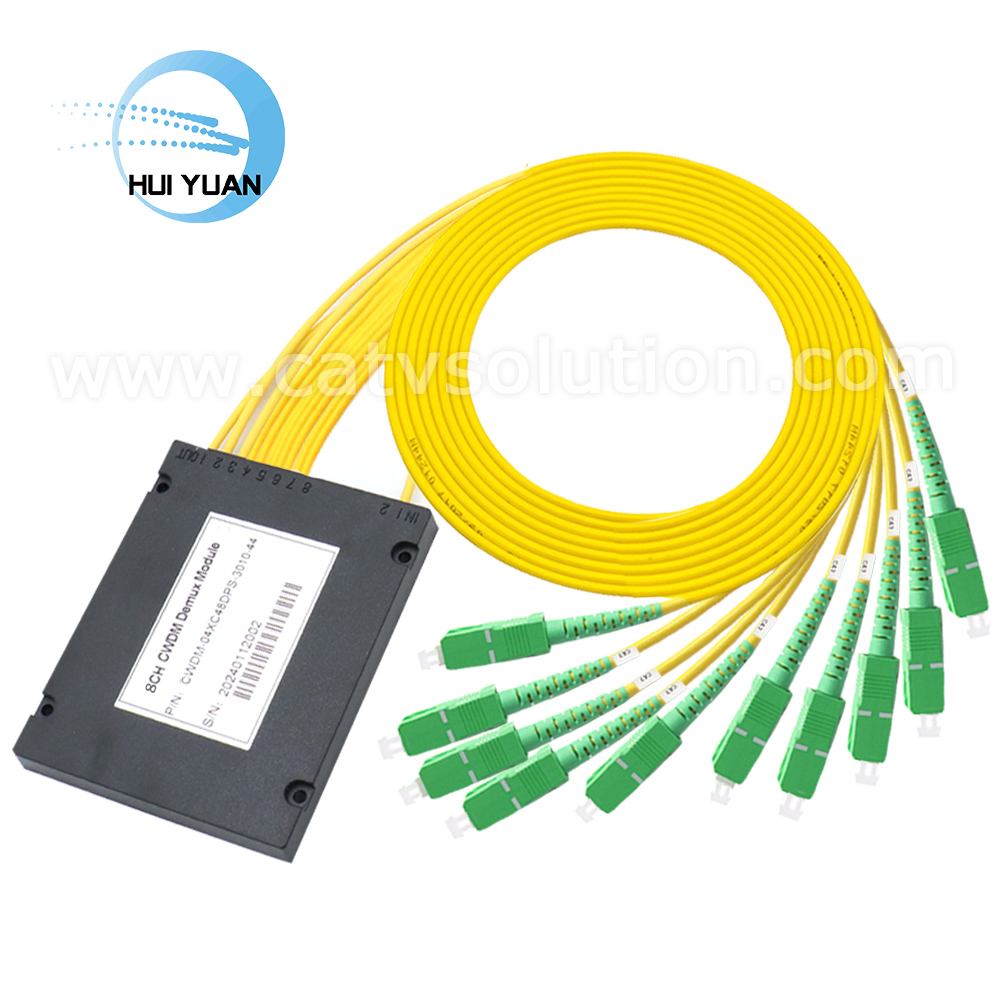

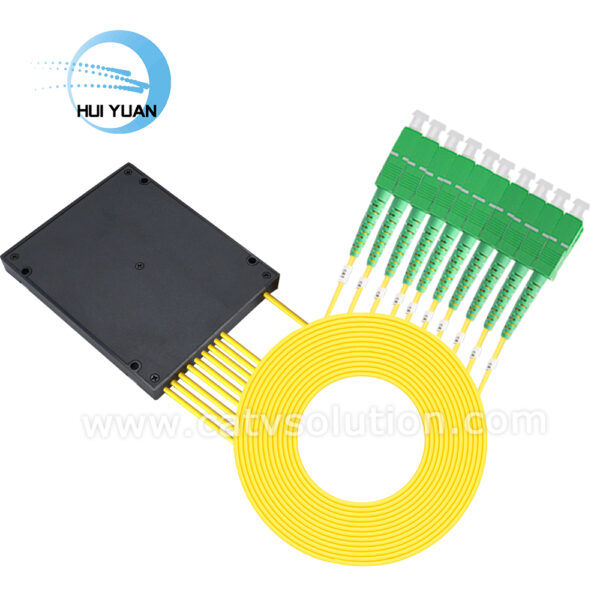

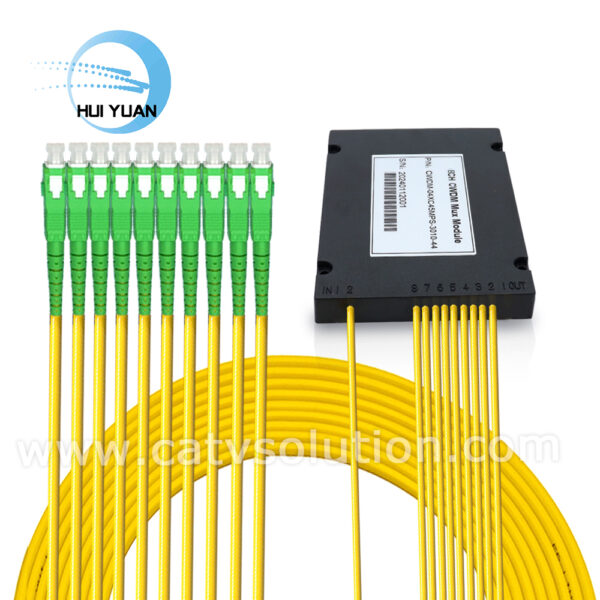

Mux/Demux Single Fiber CWDM Module
Description:
CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 2 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels,and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.
Features
- Low Insertion Loss
- High Isolation
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: 1270nm to 1620nm
- Wide Operating Temperature: -20 to 70°C
Applications
- CWDM System
- PON Networks
-
Directivity (dB) 50 Maximum Optical Power (mw) 500 Operating Temperature ()℃ -20～70 Storage Temperature ()℃ -40～85 BOX Package (mm) 100*80*10 120*80*18 CATV linksProduct specification
Parameters 1×2 1×4 1×8 1×16 Center Wavelength (nm) ITU, ITU+1 Passband (nm) ITU±6.5 Operating Wavelength (nm) 1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1570/1590/1610nm Channel Space (nm) 20 Fiber Type SMF-28e or customer specified IL (dB) 1 1.2 2.4 3.8 Isolation (dB) Adjacent Channel 30 Non-Adjacent Channel 40 Ripple (dB) 0.3 0.4 0.5 0.5 PDL (dB) 0.2 PMD (ps) 0.1 RL (dB) 45
